CMS Micro

The perfect launch pad for small development or proof of concept (PoC) projects.

SUBSCRIBE

CMS Micro offers best-of-breed content management features in a streamlined package. Build amazing websites with total control and flexibility – and deploy rapidly on a single server with a secure, reliable, and affordable hosting infrastructure powered by the AWS Cloud.

# Prerequisites

# CMS Subscription

The following steps cover the setup of the CMS Micro on the AWS Marketplace. Click the “Continue to Subscribe” button at the top of the AWS Marketplace listing page to continue the process. CMS Micro is available as a monthly subscription on the AWS Marketplace. The subscription includes the software's operational and infrastructure costs for running on AWS.

  1. Subscribe to Solodev on the AWS Marketplace. SUBSCRIBE
  2. Review and accept the "Terms and Conditions".

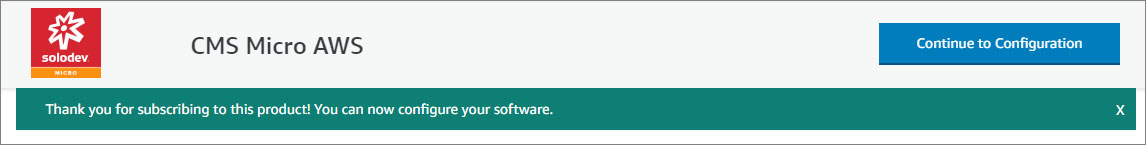

  3. Click "Continue to Configuration".

CMS Micro Continue to Configuration

# Configure Software

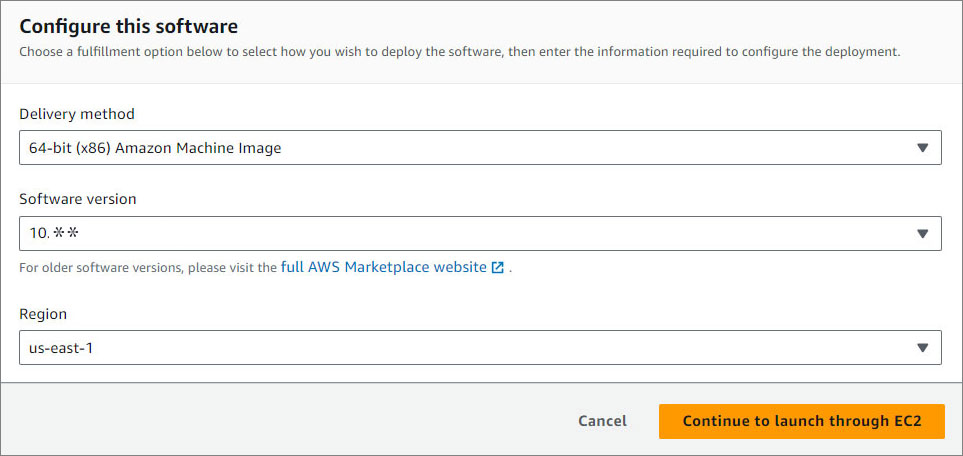

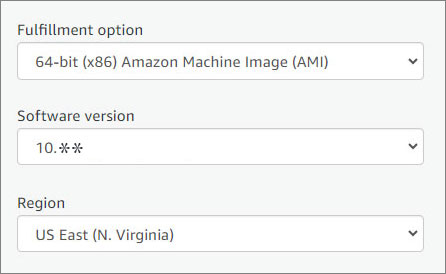

  1. Choose a fulfillment option and software version to launch this software.

CMS Micro Configure

Name Description
Fulfillment option Select a fulfillment option. Default: Amazon Machine Image (AMI).
Software version Select the software version. The latest version of Solodev CMS Micro is always recommended.
Region Select the AWS Region.
  1. Click "Continue to Launch."

CMS Micro continue to launch

# Launch Software

Review the launch configuration details and follow the instructions to launch this software.

To continue the installation, click the Launch button below and follow the outlined steps.

LAUNCH CMS MICRO

# Create Stack

  1. Create a stack.

CMS Micro Create Stack

  1. Click Next.

# Stack Details

# Provide a stack name
  1. Provide a stack name. Stack name must be 1 to 128 characters, start with a letter, and only contain alphanumeric characters.

CMS Micro stack name

# Parameters
  1. Specify the parameters in the setup section.

CMS Micro params setup

Name Description
VPCID Choose which VPC the Application should be deployed to.

An Amazon Virtual Private Cloud (VPC) is a dedicated environment that lets you launch the AWS resources that power your CMS Micro in an isolated virtual network. If you do not have a VPC, you will need to create one in your VPC Console. For instructions on how to create a VPC, click here for instructions .
PublicSubnetID The ID of the public subnet in Availability Zone 1 in your existing VPC (e.g., subnet-a0246dcd).

A subnet is a range of IP addresses contained in your VPC. You can create AWS resources, such as EC2 instances, in specific subnets, enabling you to group network resources more efficiently. If you do not have any existing subnets, you will need to create one in your Subnet Console. For instructions, click here .
InstanceType CMS Micro runs on a single Amazon Elastic Compute (EC2) instance and is defaulted to run on a recommended t2.large server. Depending on your traffic needs, you can select an instance size from the available options in the menu.

To learn more about which instance to choose based on your traffic needs, click here .
KeyName Name of an existing EC2 KeyPair to enable SSH access to the instances.

An Amazon EC2 key pair is a set of security credentials consisting of a public and private key that verify a user’s identity when connecting or communicating with an EC2 instance. Select an existing security group from the menu or configure a new security group using the form provided. If you do not have a Key Pair, you will need to create one in your Key Pair Console. For instructions click here .
AmiAlias An AMI Alias refers to a user-defined name or identifier for an Amazon Machine Image (AMI) that simplifies the process of referring to an AMI. Click here to learn more about AMIs.
WebsiteUrl Name of initial Solodev website.
HostVolumeSize Size in GB of root volume.
DeletionPolicy A Deletion Policy is a configuration that you can set for resources in AWS CloudFormation templates to specify what should happen to the resource when its stack is deleted.
  1. Optional: SSO.

CMS Micro params optional

Name Description
SsoProviderUrl Issuer URL of your OpenID Connect provider.
SsoClientId Unique identifier assigned to a client application that is registered with an AWS Single Sign-On (SSO) service, used to authenticate and authorize the application to access SSO resources.
SsoClientSecret Confidential key assigned to a client application registered with an AWS Single Sign-On (SSO) service, used in conjunction with the SSO Client ID to authenticate the application and secure access to SSO resources.
  1. Click Next.

# Configure Stack Options

  1. Add a new tag. This step is optional.

Tags (key-value pairs) are used to apply metadata to AWS resources, which can help in organizing, identifying, and categorizing those resources. You can add up to 50 unique tags for each stack. If you need more information about tags, click here.

CMS Micro tags

  1. Specify an existing AWS Identity and Access Management (IAM) service role that CloudFormation can assume. This step is optional.

CMS Micro permissions

  1. Select the stack failure options.

CMS Micro failure

Name Description
Behavior on provisioning failure Specify the roll back behavior for a stack failure..
Delete newly created resources during a rollback Specify whether resources that were created during a failed operation should be deleted regardless of their deletion policy.

To learn more about the stack failure options, click here .

# Advanced options

  1. You can set additional options for your stack, like notification options and a stack policy. For more information, click here .

CMS Micro advanced options

  1. Click Next.

# Review and create

  1. Review your settings.

  2. Acknowledge the AWS CloudFormation terms.

CMS Micro capabilities

  1. Click Submit.

# Stacks

  1. Watch your CMS being created! Once the status changes from CREATE_IN_PROGRESS to CREATE_COMPLETE, you can access your CMS.

CMS Micro Stack

  1. Click on the Outputs tab and copy the AdminUrl value.

CMS Micro Stack Outputs

  1. Open your preferred browser and paste the AdminUrl value to access the CMS login page. Use the Admin Username and Admin Password provided in the stacks output to log in.

Solodev CMS Login Screen

# Choose an Action

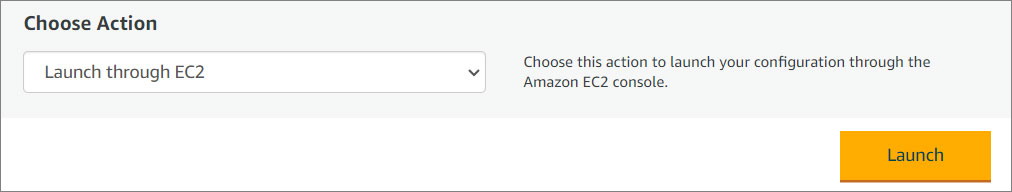

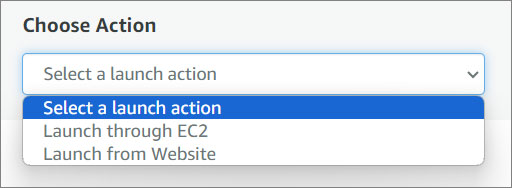

  1. Select Launch through EC2.

CMS Micro Actions

  1. Click Launch.

# Launch an instance

Create virtual machines, or instances, that run on the AWS Cloud. Quickly get started by following the simple steps below.

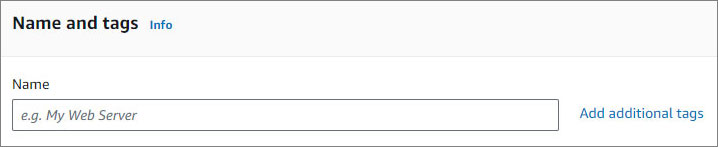

  1. Name and tags. Give your instance a name. You can also add additional tags (Optional).

Solodev CMS Micro Name

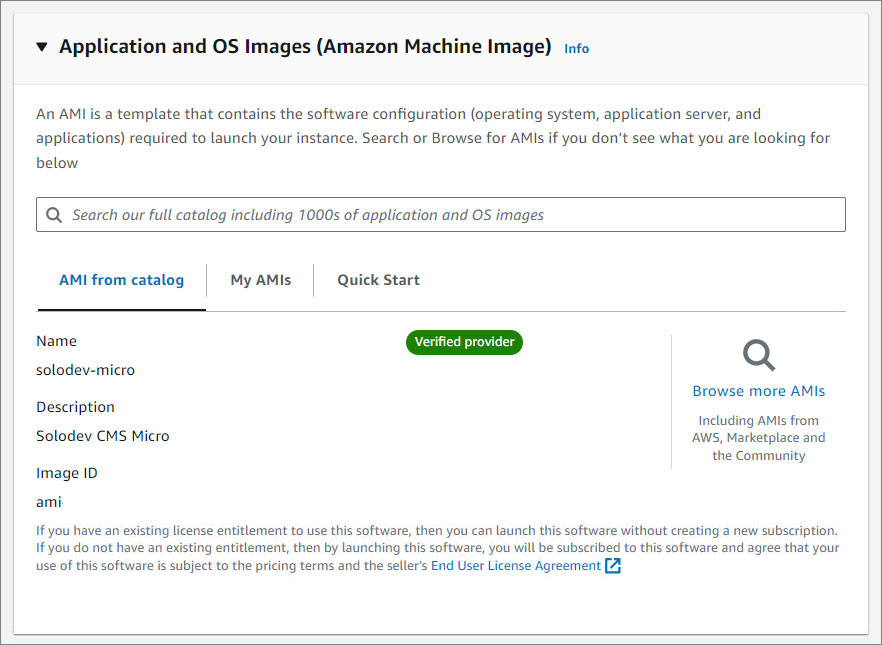

  1. Application and OS Images (Amazon Machine Image). An AMI contains the software configuration (operating system (OS), application server, and applications) required to launch your instance.

Solodev CMS Micro Amazon Machine Image

For more information about Amazon Machine Image, click here .

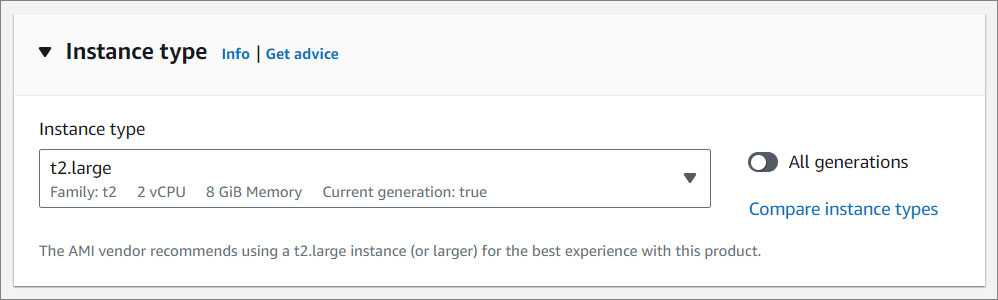

  1. Instance Type. Select an instance type that meets your computing, memory, networking, or storage needs.

Solodev CMS Micro Instance Type

To learn more about which instance to select based on your traffic needs, click here .

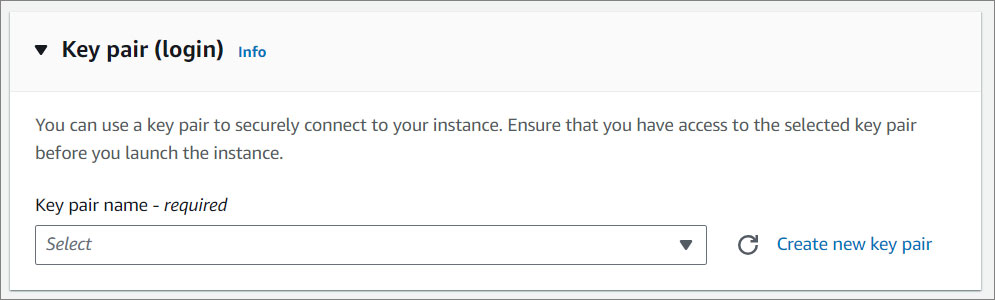

  1. Key Pair. You can use a key pair to securely connect to your instance. Ensure that you have access to the selected key pair before you launch the instance.

Solodev CMS Micro Key Pair

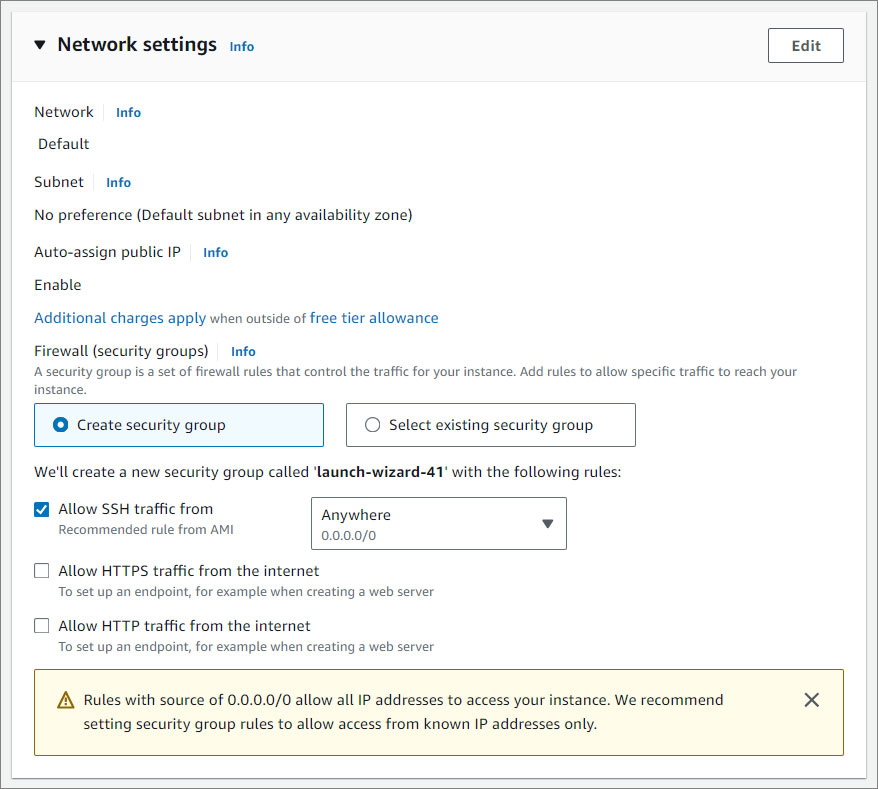

  1. Network Settings. Here you can create or select an existing security group, create an instance that can connect using SSH, and more.

Solodev CMS Micro Network Settings

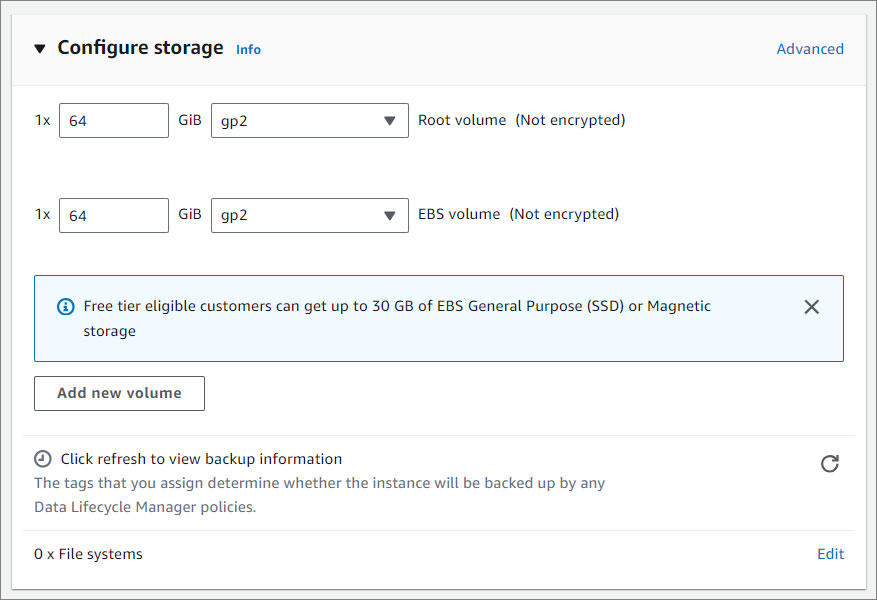

  1. Configure storage. Specify the storage options for the instance.

Solodev CMS Micro Storage

For more information about storage, click here .

  1. Click Launch Instance.

Solodev CMS Micro Launch Instance

  1. You will get a success message. Click on the ID to access your EC2 Instance.

Solodev CMS Micro Success Message

# EC2 Instance

  1. Check the Instance State and Status Check of your instance. Once your instance state changed from Pending to Running, click on the instance you created to access it.

Solodev CMS Micro Instance

  1. Click on your Public IPv4 address to access the login page.

Solodev CMS Micro Public Address

  1. To log in, use solodev as the username and your instance ID as the password.

Solodev CMS Login Screen

# Choose an Action

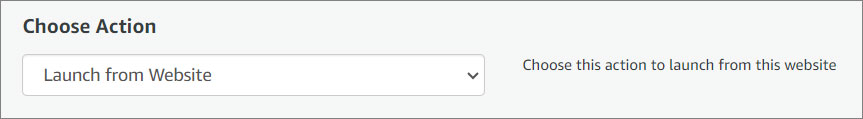

  1. Select Launch from Website

CMS Micro Choose Actions

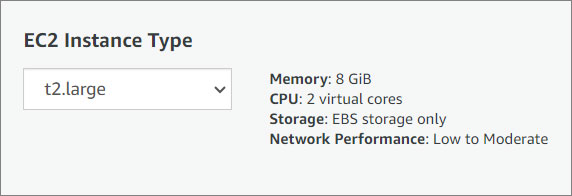

  1. EC2 Instance Type. CMS Micro runs on a single Amazon Elastic Compute (EC2) instance and is defaulted to run on a recommended t2.large server. Depending on your traffic needs, you can select an instance size from the available options in the menu.

CMS Micro EC2 Instance Type

To learn more about which instance to choose based on your traffic needs, click here .

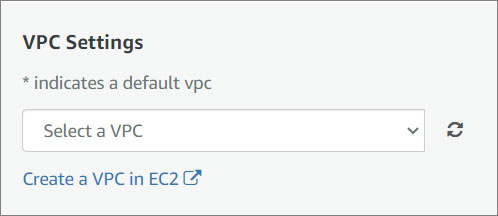

  1. VPC Settings. An Amazon Virtual Private Cloud (VPC) is a dedicated environment that lets you launch the AWS resources that power your CMS Micro in an isolated virtual network. If you do not have a VPC, you will need to create one in your VPC Console.

CMS Micro VPC Settings

For instructions on how to create a VPC, click here for instructions .

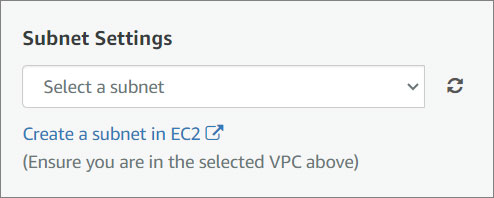

  1. Subnet Settings. A subnet is a range of IP addresses contained in your VPC. You can create AWS resources, such as EC2 instances, in specific subnets, enabling you to group network resources more efficiently.

CMS Micro Subnet Settings

If you do not have any existing subnets, you will need to create one in your Subnet Console. For instructions, click here .

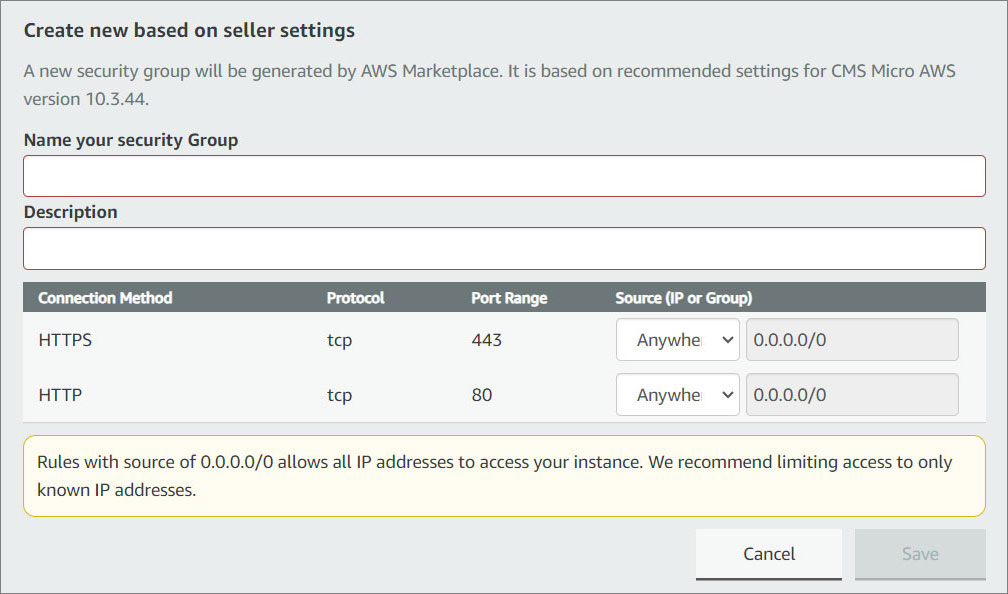

  1. Security Group Settings. A security group acts as a firewall that controls the traffic allowed to reach one or more instances. You can create a new security group or choose one of your existing groups. Select an existing security group from the menu or configure a new security group using the form provided. Name your security group and give it a description.

CMS Micro Security Groups

To learn more about security groups, click here .

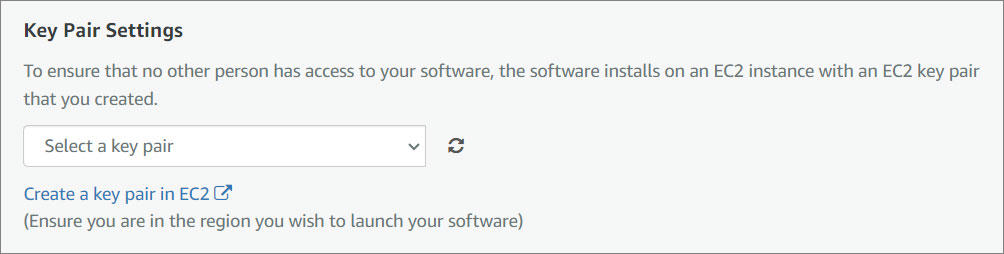

  1. Key Pair Settings. An Amazon EC2 key pair is a set of security credentials consisting of a public and private key that verify a user’s identity when connecting or communicating with an EC2 instance. Select an existing security group from the menu or configure a new security group using the form provided.

CMS Micro Key Pair Settings

If you do not have a Key Pair, you will need to create one in your Key Pair Console. For instructions click here .

  1. Click Launch.

  2. You will receive a success message to view your instance. Click on EC2 Console.

CMS Micro Launch Message

# EC2 Instance

  1. Check the Instance State and Status Check of your instance. Once your instance state changed from Pending to Running, click on the instance you created to access it.

Solodev CMS Micro Instance

  1. Click on your Public IPv4 address to access the login page.

Solodev CMS Micro Public Address

  1. To log in, use solodev as the username and your instance ID as the password.

Solodev CMS Login Screen

# Next Steps

# Add your first website

Please follow this link to learn more about Solodev and to learn how to build your first website.

# Troubleshooting

Under your Security Group settings, make sure ports 443 and 80 are open to 0.0.0.0/0. If you selected Launch through EC2 and did not create a new Security Group, click here .

Make sure to add your IP address as an inbound rule on the Web Security Group for port 22. For more information, click here
